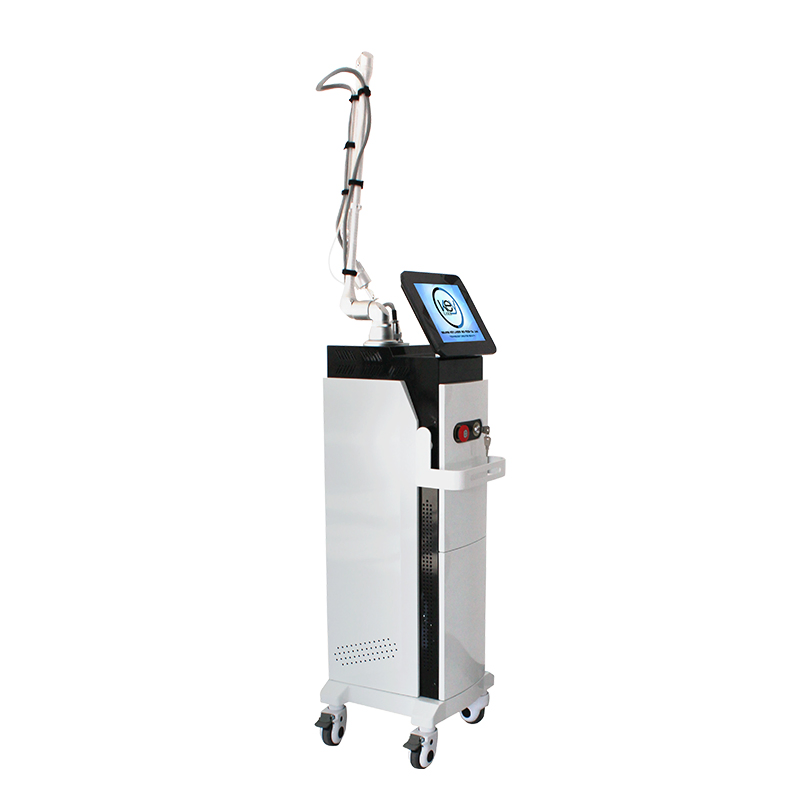

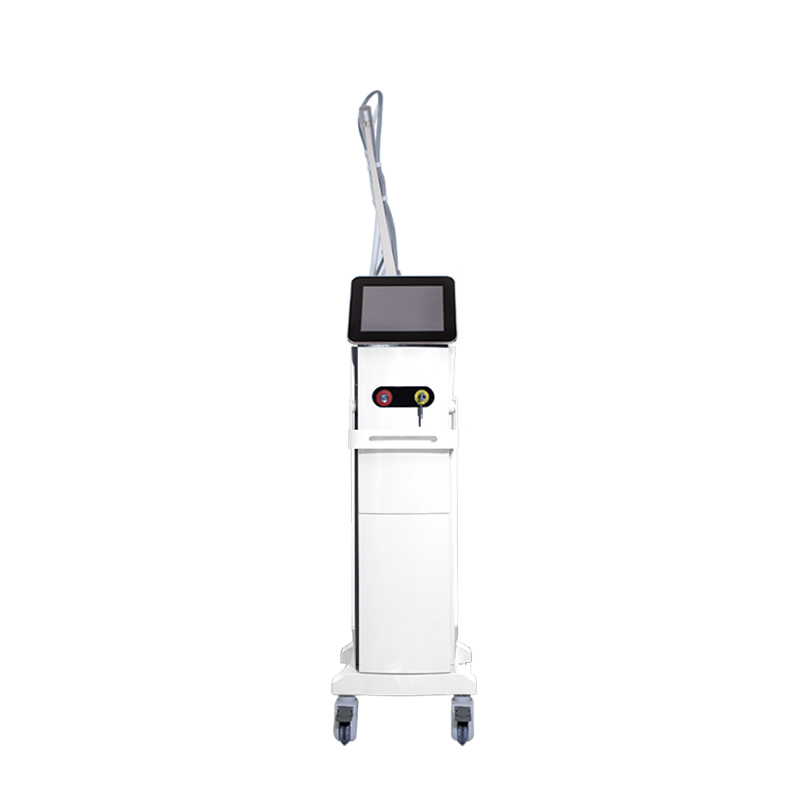

Latest Clinical Medical CO2 Fractional Laser Treatment Equipment, Skin Resurfacing Machine

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info

Model NO.
k106+
Portable
Non Portable
Wavelength
10600nm
Laser
CO2 Laser
Micro Pulse Energy
5mj-100mj
Indication Beam
Diode Laser(532nm,5MW)
Handle Place Velocity
0.1-9cm²/S
Scan Depth
2mm
Estimated Power
24mj-1000j
Pulse Duration
90-1000us
Laser Emitter
RF Tube
Scanning Graphic
Rectangular, Ellipse, Round, Triangle
Power
40W/60W
System
Fractional Mode+Surgical Mode+Vaginal Mode
Screen
12 Inch
Transport Package
Aluminum Alloy Case
Specification
57X54X122cm3
Origin
China

Product Description

Detailed Photos & Features

  • Individual structure design, greatly facility laser replacement and easy daily maintenance.

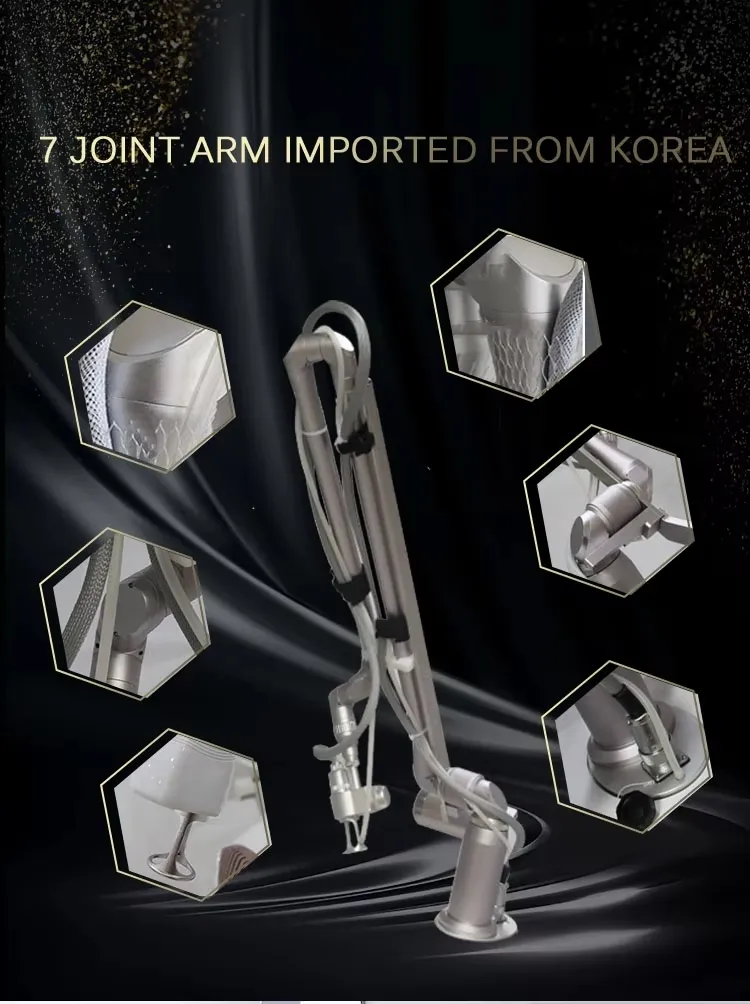

  • Korea Imported 7 Jointed Laser Arm.
  • Humanized software control, stable laser output, much safer.
  • Excellent treatment results, not affect people's normal life and study.
  • Comfortable, no pain, no scar in treatment.
  • USA coherent metal tube (RF-excited).

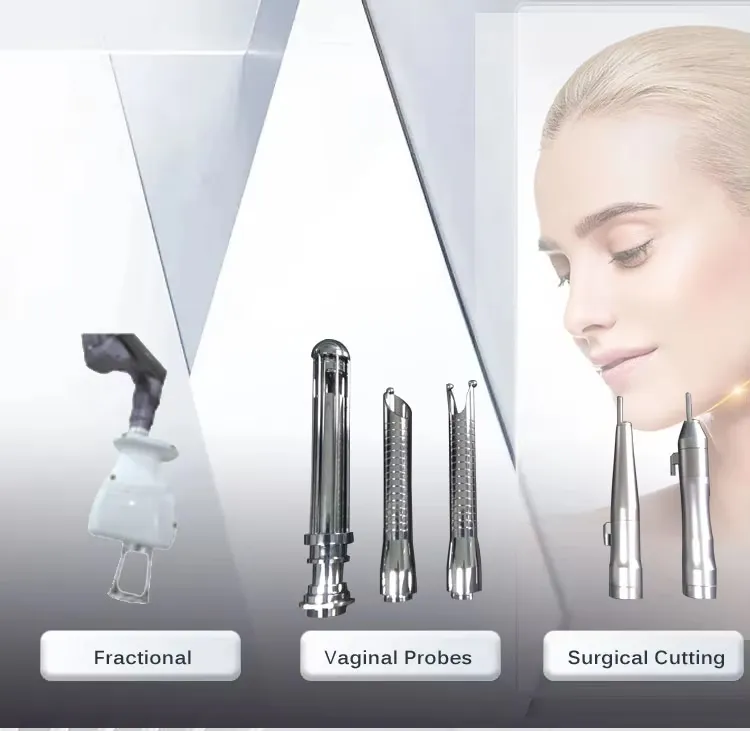

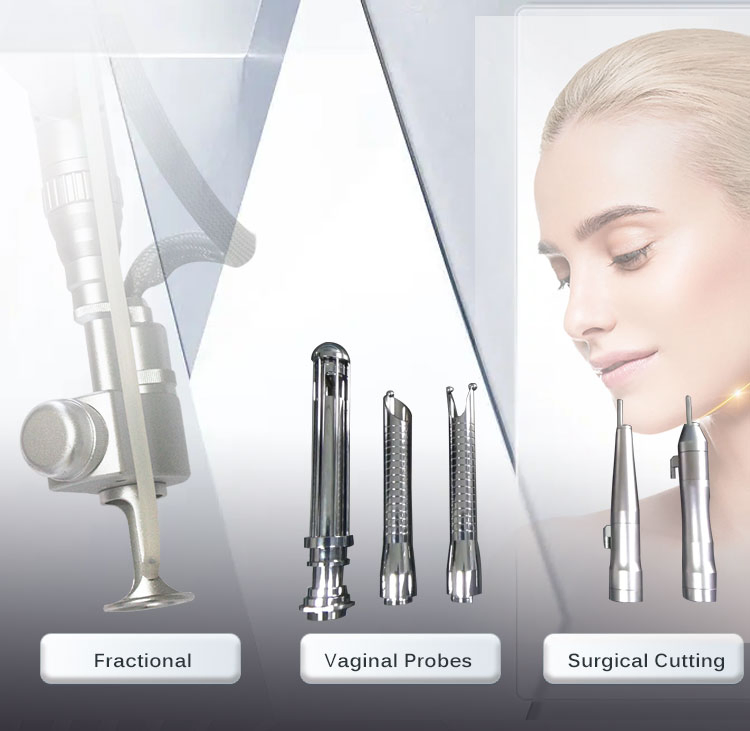

  • 3 in 1 system: Fractional mode + Surgical mode + Vaginal mode.
  • Aiming beam adjustable, ensure accurate treatment.

Product Operation

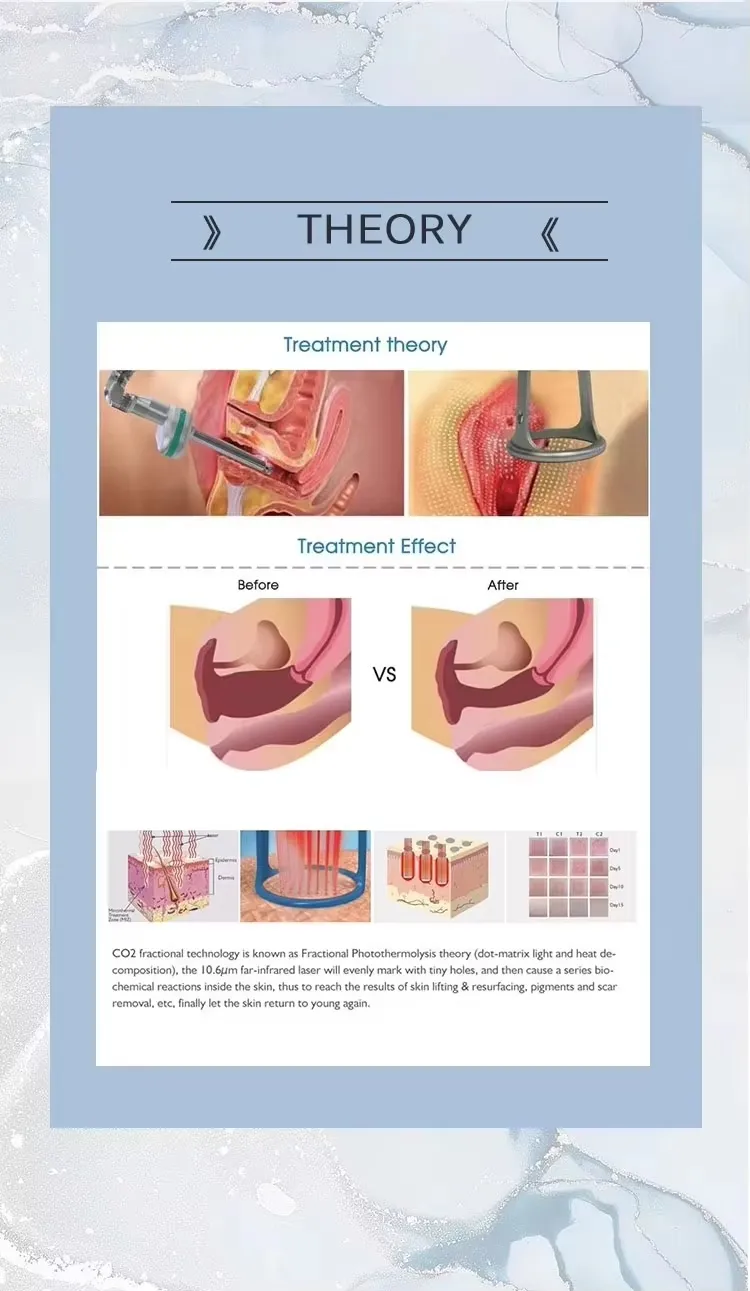

Laser screen interface parameters

Technology Principle

How it works?

The newly developed RF CO2 fractional laser fires a laser beam through an RF CO2 tube which is split into numbers of microscopic beams, producing a tinier dot than general CO2 lasers (glass tubes). The treatment tip can vaporize the outmost layers of the skin across a large surface by creating thousands of tiny, microscopic laser wounds, spaced in an even pattern across the skin, but leaving areas of healthy, untreated skin between them. The lower collagen layer of the dermis is stimulated to renew and repair. Therefore, the heat of the laser only passes deeply through the factionally damaged area; the surface of the skin now contains only microscopic surface wounds, instead of a large, red, oozing burn. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation. After some recovery, the newly-generated skin is remarkably smoother and healthier.

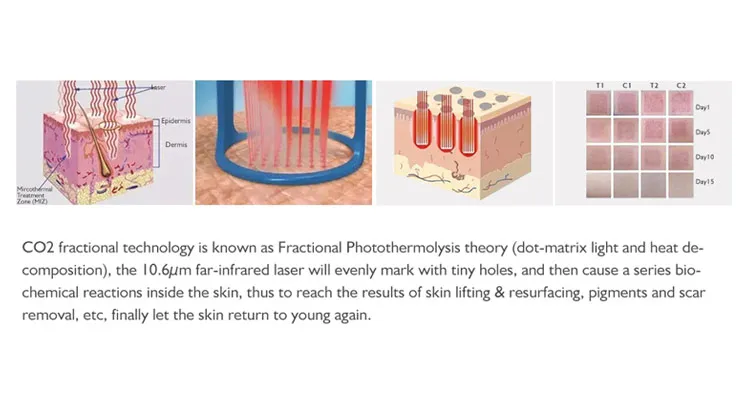

Laser technology mechanism diagram

Product Specifications

Parameter Specifications
Wavelength 10600nm
Power Output 1-40W/60W
Laser Type UltraPulse; CW; Fractional Vaginal
Spot Size 0.12mm & 1.25mm (adjustable)
Spot Density Up to 102400 dot
Scan Size Up to 20x20mm
Scan Shapes Square; Rectangle; Circle; Triangle; Rhombus; Ellipse; Line
Beam Patterns Standard; Random; Scatter
Aiming Beam 5mW red diode laser, 635nm, adjustable intensity, blink on/off
Beam Delivery Articulated 7-joint arm with up to 360° rotation
Cooling Self-contained, closed cycle
Stand-by Working Continuously for 18 hours
Display 12 Color LCD Touch Screen
Electrical Requirements 100-240VAC, 20A max., 50/60Hz
Net Weight 52 kg
Dimensions (WxDxH) 52*38*117cm

Before & After

Before and After treatment results

Production & Quality Control

Founded in 2007, our medical device manufacturing facility produces high-end products for plastic surgeons, dermatologists, physicians, and healthcare professionals. With various reliable product lines including IPL, RF microneedle, CO2, Diode laser, and Q-Switch laser, we serve the industry as one of the leading manufacturers with a rigorous R&D level and valuable experience. We develop the most progressive products to lead the global market, cooperating with world-wide distribution partners to provide the highest customer satisfaction.

Packing & Delivery

1. Protective Packing

The machine will be packed securely in a durable aluminum alloy case for maximum protection during shipment.

2. Global Shipping Options

We offer reliable shipping methods including DHL, EMS, TNT, and others. Delivery via DHL typically takes about 3-5 working days to your location.

Frequently Asked Questions

What shipping methods do you offer for delivery?
We can offer door-to-door services by air or by sea, depending on your actual request. Shipping options include air carriers like DHL, UPS, TNT, FEDEX, as well as sea transportation.
What is the estimated delivery time?
Orders are processed and dispatched within 7 working days after payment is received.
How is the product packaged for transit?
Every unit is packed in a strong and aesthetically designed aluminum alloy case to ensure structural safety during transportation.
Do you provide technical support?
Yes, we have a professional technical support team ready to assist you. We provide detailed technical documentation and offer support via telephone, webcam, or online chat.
What payment methods do you accept?
Our standard payment terms support T/T (Telegraphic Transfer) and Western Union.
What kind of after-sales service and warranty do you offer?
We provide a comprehensive 12-month warranty to all customers to ensure long-term, worry-free operation.
