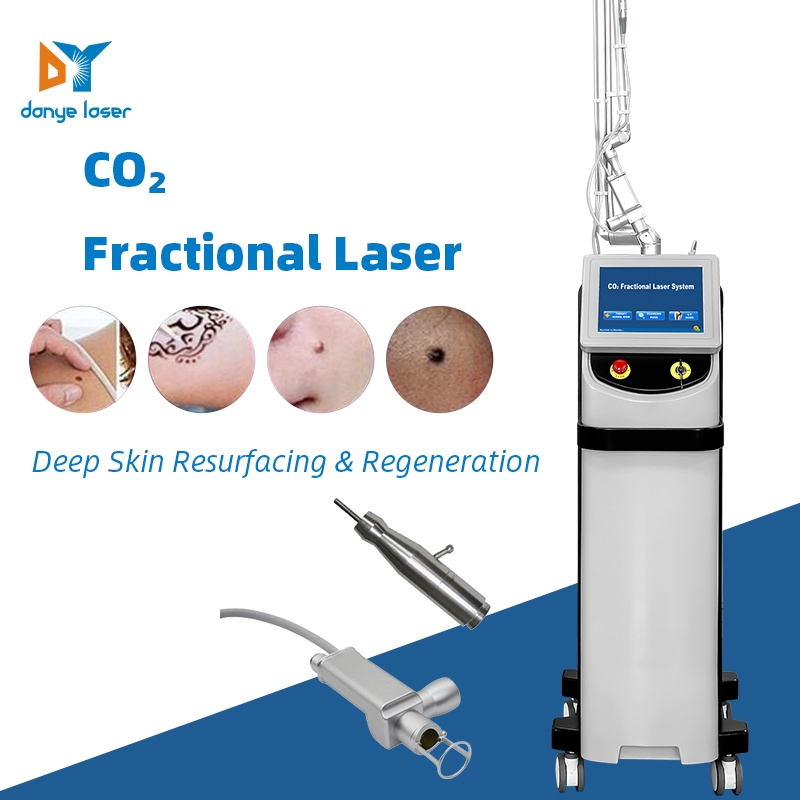

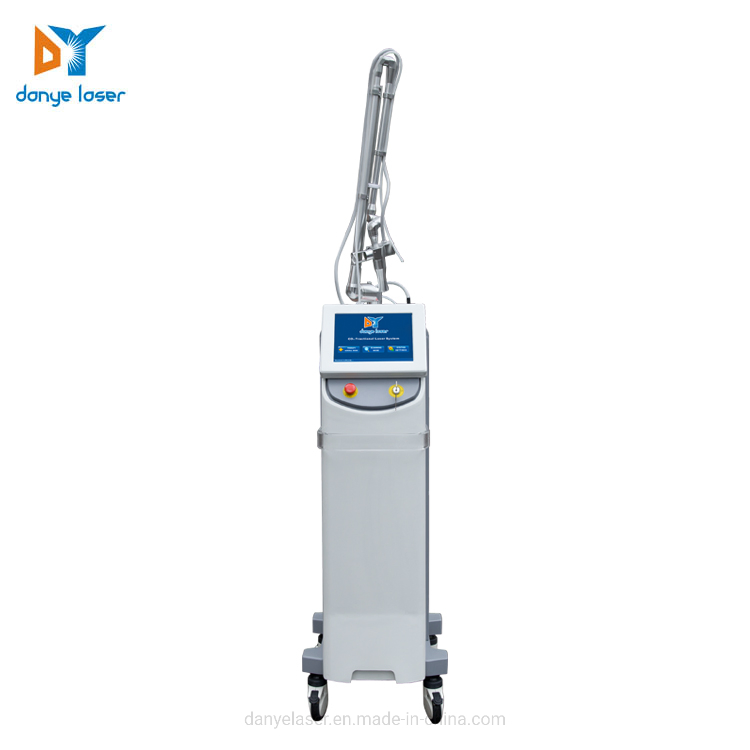

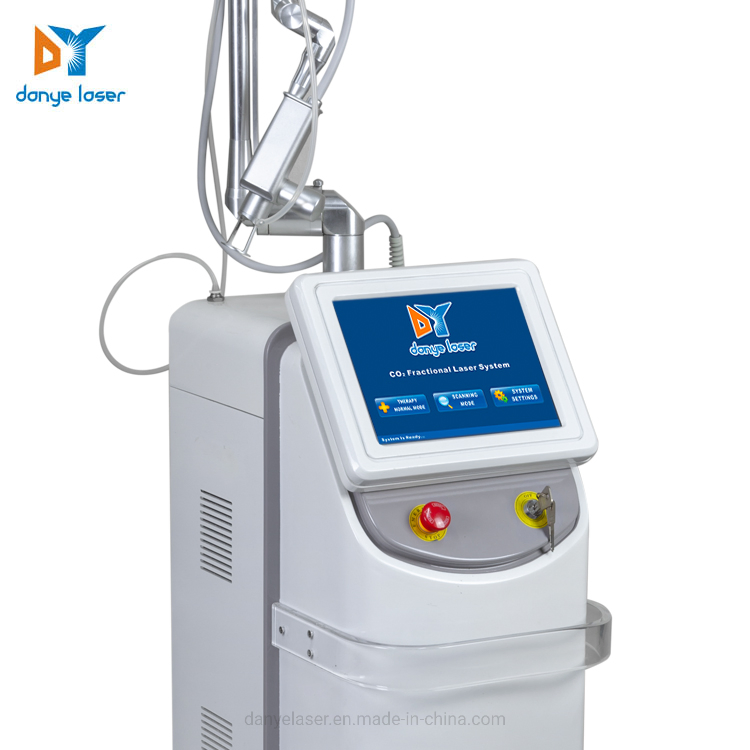

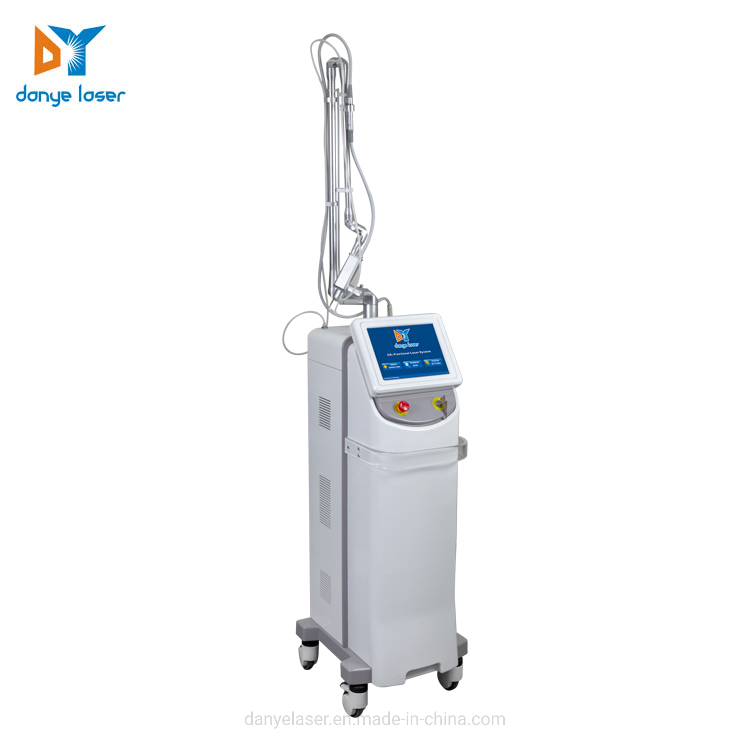

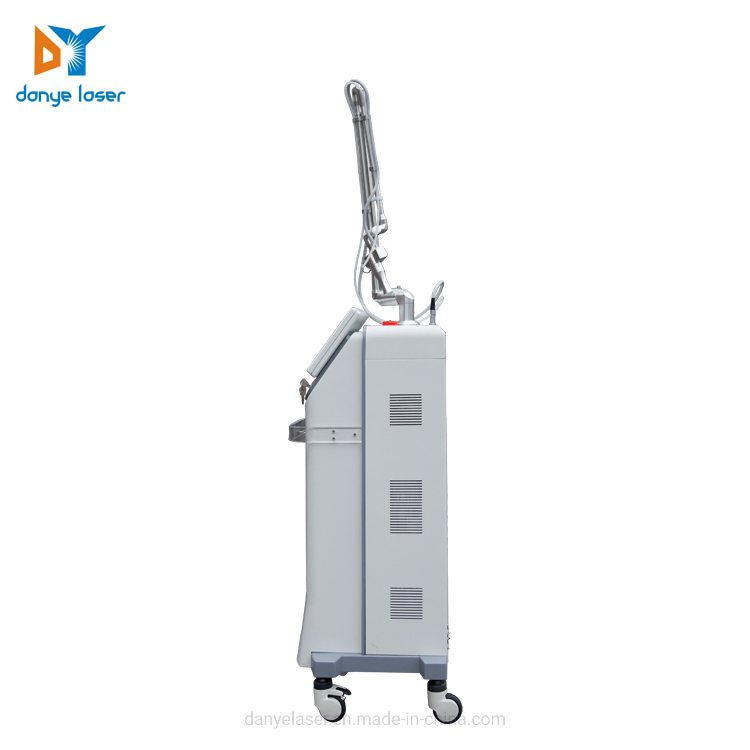

CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
1 / 5
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head
CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head

CO2 Laser Therapy Spot Removal Skin Tag CO2 Fractional Laser Machine Scanning Head Cutting Head

Customization: Available
Type: CO2 Laser
Theory: Laser
Send Inquiry

Product Description

  • Overview
  • Product Description

Basic Info.

Model NO. DY-CO2
Application Salon, Clinic, Studio, Hospital
Portable Non Portable
Function Skin Resurfacing, Spots Acnes Removal
Certificate CE, SGS
Wavelength 10600nm
Working Mode Scan Mode, Cut Mode, Vaginal Tightening
Scan Mode Triangle/Square/Rectangle/Diamond/Round/Line
Scan Range 20mm-20mm
Spots Size 0.2mm-2mm
Screen Display 10.4 Inch Color Touch
Light Conduct 7-Jointed Arm Light Conduct
Output Power 30W
Warranty 1 Year
Logo Customized
Language Customized
Plug EU, Au, UK, Us, Jp, Cn, etc
OEM&ODM Acceptable
Transport Package Wooden Package
Specification 62cm*68cm*130cm
HS Code 8543709990
Production Capacity 200/Month

Product Description

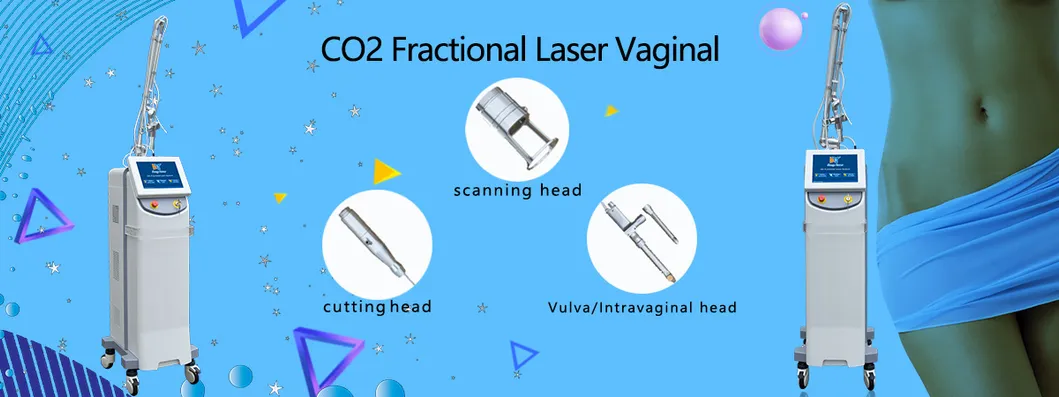

CO2 Fractional Laser Machine Overview

CO2 Fractional Laser

Fires a laser beam which is split into numbers of microscopic beams, producing tiny dot or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.

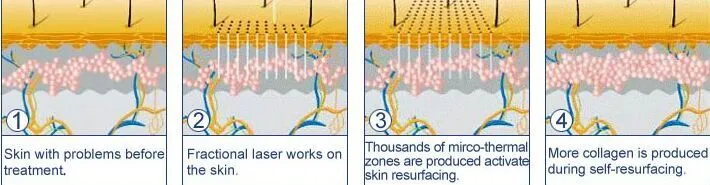

Laser Skin Layer Penetration Mechanism

Our Advantages

1
Dual Features

Combine scanning and cutting features seamlessly into one advanced treatment machine.

2
Precise Targeting

Clearly aim to specify the treatment target and precisely scan different custom graphics.

3
Easy Operation

Equipped with a large 8-inch touch screen designed for simple and intuitive control.

4
High Performance

Provides strong power, highly stable performance quality, and long-lasting productivity.

Treatment Functions

✓
Wrinkle Reduction

Effective reduction and possible removal of fine lines and face wrinkles.

✓
Scar & Blemish Care

Significant reduction of age spots, skin blemishes, and stubborn acne scars.

✓
Sun Damage Repair

Repairs sun-damaged skin across the face, neck, shoulders, and hands.

✓
Pigmentation Management

Reduction of hyper-pigmentation, darker pigment layers, or brown patches.

✓
Skin Surface Improvement

Improvement of deep wrinkles, surgical scars, enlarged pores, birthmarks, and vascular lesions.

Technical Specifications

Parameter Specification Details
ModelDY-CO2
Laser typeSealed off CO2 laser
Wavelength10.6 microns, far-infrared laser
Screen display10.4 inch color LCD touch screen
Laser modeLow-valence mode
Output power0-30W, continuously adjustable
Focus spot diameter0.4mm
Lens focal distanceF=100mm
Delivery system7-joint articulated arm
Working modeContinuous, single pulse, repeat pulse, and super pulse
Pulse duration1-500MS
Input power800VA
Environment Temperature5-40ºC
Relative humidity<80%
Scanner Range20*20mm
Scanner GraphicsTriangle/square/rectangle/diamond/round/line
Scanner density0.2-2mm/dot
Cooling systemClosed loop circulating water
Power supplyAC220V ± 10% 50Hz
Machine sizeL45*W40*H115cm/183cm (include arms)
Net weight37kg

Before and After Results

CO2 Laser Treatment Before and After Results

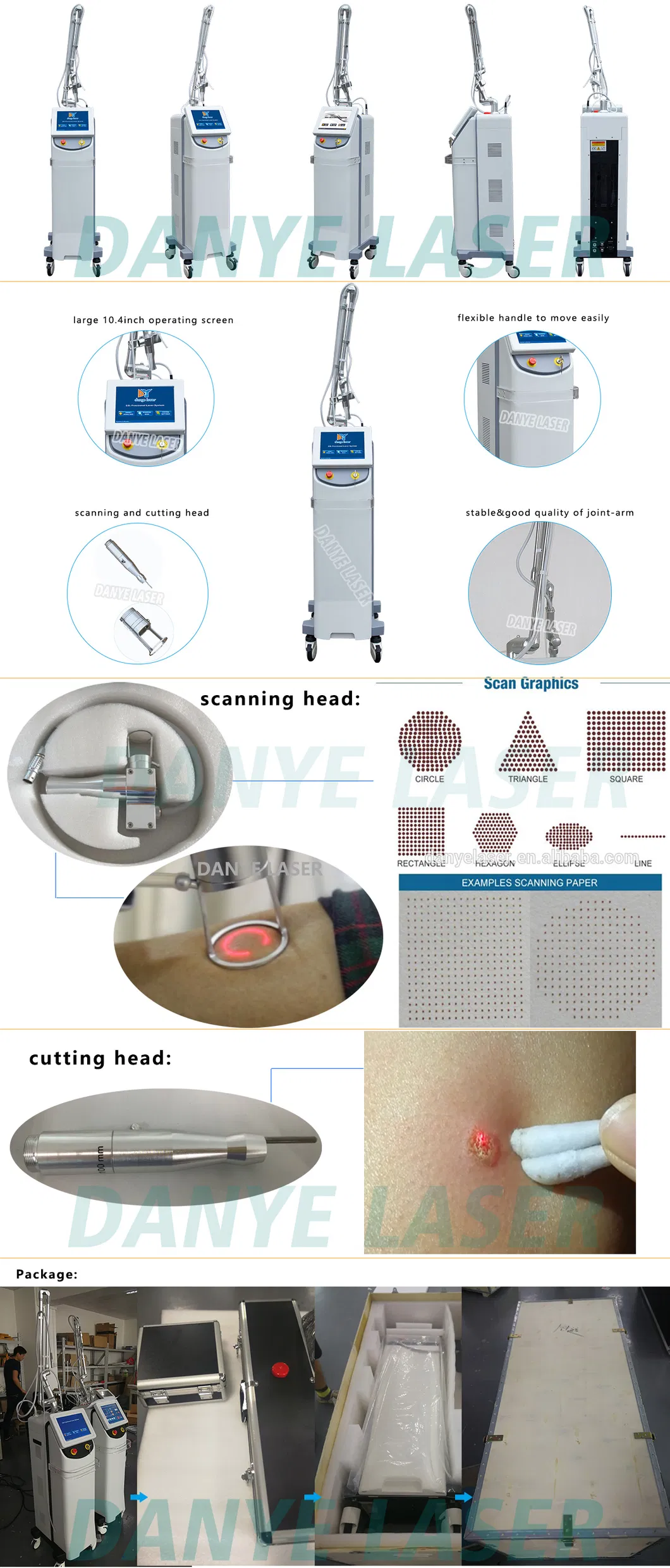

Product Detail Showcase

CO2 Laser Machine Display and Configurations

Certifications & Feedbacks

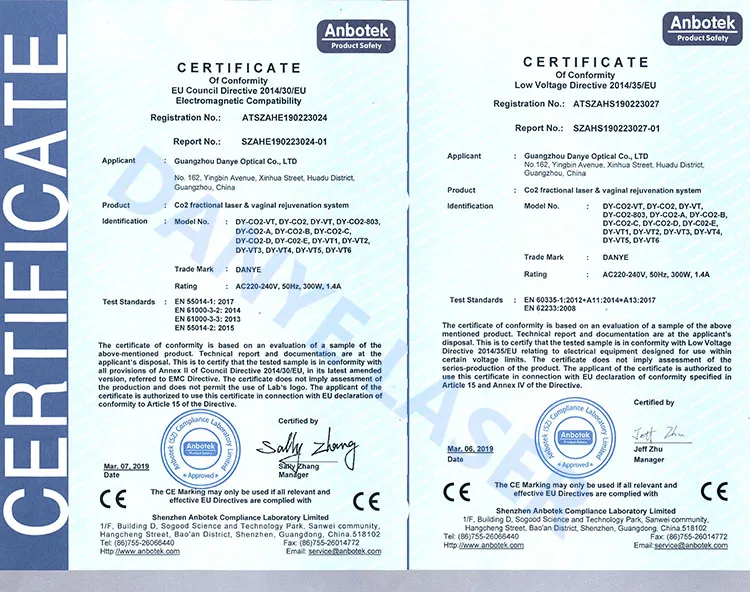

CE Certificate Approval
CE Certificate

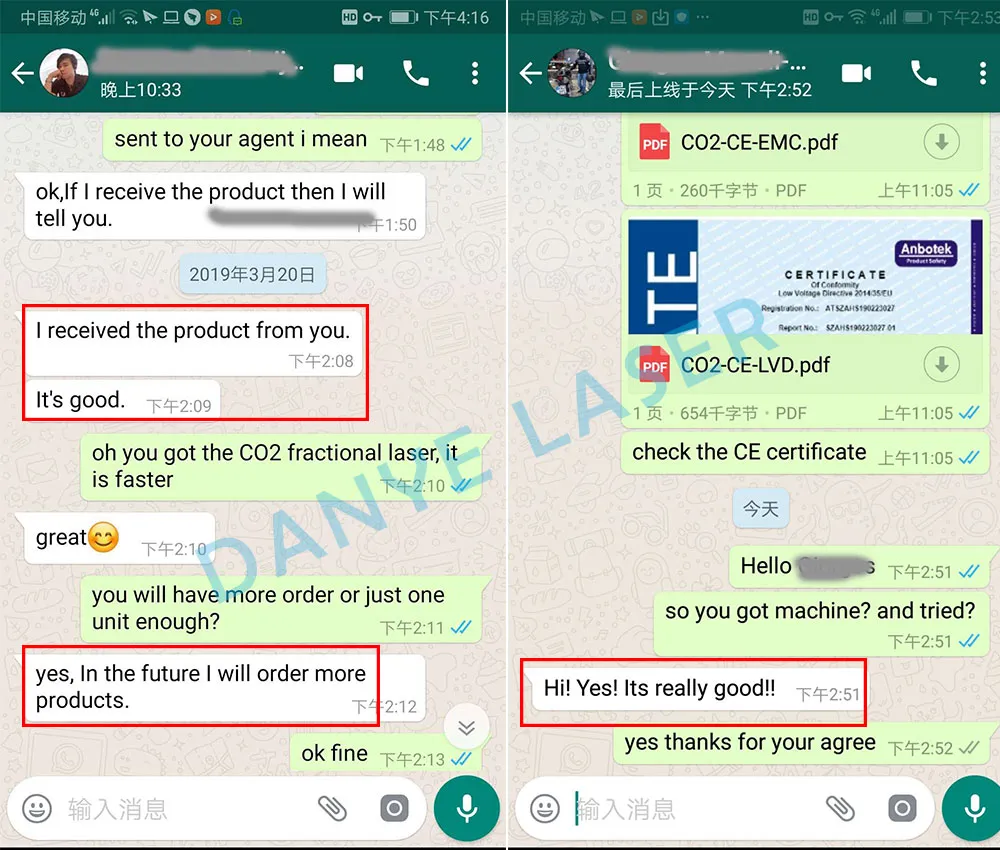

Client Feedback and Reviews
Client's Feedback

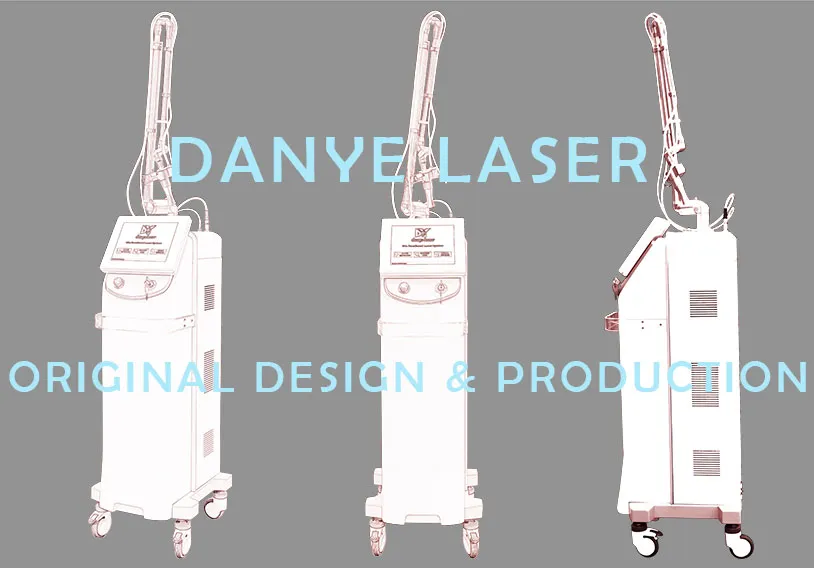

Original Mechanical Design
Original Design Diagram

Frequently Asked Questions

What is the main operating wavelength of the DY-CO2 laser machine? ▼
The machine operates at a wavelength of 10600nm (10.6 microns), which falls under the far-infrared laser spectrum, highly optimized for skin tissue interaction.
How does the fractional feature assist in skin healing? ▼
The laser beam is split into multiple microscopic beams to create tiny, targeted fractional treatment zones. Leaving the surrounding tissue untouched allows the skin to heal much faster and stimulates rich collagen production.
What shapes and graphics can be scanned during treatment? ▼
The system supports multiple scanning graphics including Triangle, Square, Rectangle, Diamond, Round, and Line, allowing for flexible and precise target area adjustments.
What is the difference between scanning and cutting features on this model? ▼
This unit successfully combines both scanning (for fractional resurfacing, spot and acne scar removal) and cutting modes (for precise dermatological excisions) into a single versatile workstation.
Can I customize the logo and interface languages on the display? ▼
Yes, both the machine's external logo and system interface languages are customizable to suit your branding and regional clinic needs.
What kind of cooling system does the DY-CO2 machine utilize? ▼
It uses a closed-loop circulating water cooling system to ensure stability, continuous power output, and safety during long treatment sessions.
